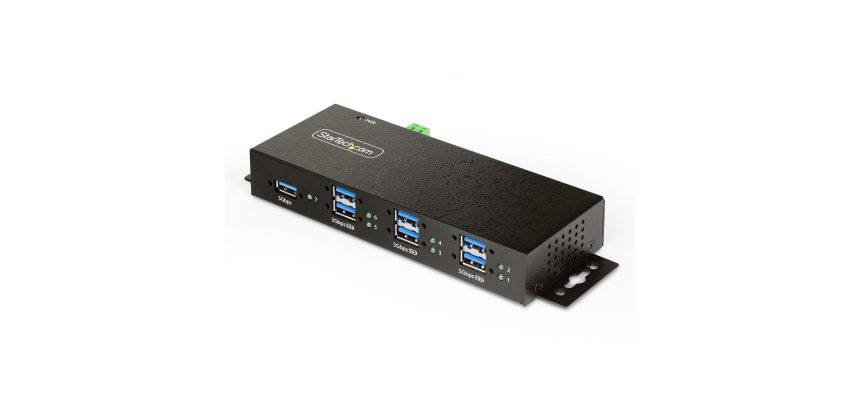

StarTech.com 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - TAA

Connect and manage up to seven USB Type-A devices, using this USB hub - designed for industrial/commercial environments

This 7-port Managed Industrial USB 5Gbps Hub enables users to toggle individual USB ports on/off and to reboot the hub, using the USB Hub Administrator Software (free to download). With robust housing and versatile power input options, the USB Hub is designed to cater to the needs of IT Professionals working in industrial settings such as factories, warehouses, offices, and other similar environments.

Managed USB Hub

The USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:

• Enable or disable individual or all ports on the USB Hub.
• Reboot the USB Hub.
• Set a password to restrict unauthorized access.
• Save port states for quick setup in specific applications.
• Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.

The software is compatible with Windows, macOS, and Linux, making it versatile across different platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.

Rugged and Reliable

The Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.

Power Flexibility

The USB Hub offers power flexibility to cater to diverse user needs. It supports a wide voltage range from +7 to 24 volts DC, ensuring compatibility with various power sources. With two DC inputs, featuring both a terminal block and a concentric barrel connector, users can choose to power the USB Hub using either input or both simultaneously for redundancy. The USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 6 of the downstream ports, so you can power and quickly charge external devices.

StarTech.com offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.

Mounting Options

The USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.

High-Performance

The rugged USB Hub supports SuperSpeed USB 5Gbps and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech.com Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
