Detailled description

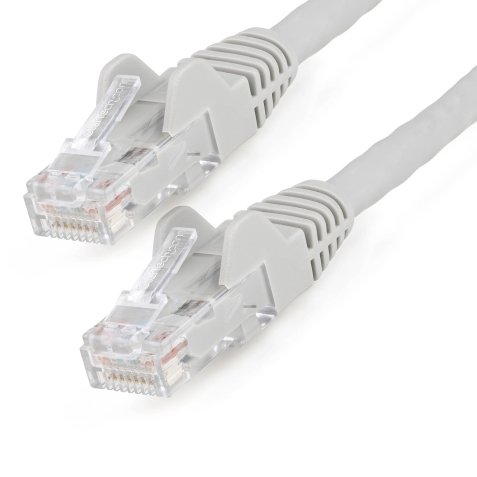

Ethernet CAT6 Cable | LSZH (Low Smoke Zero Halogen) | Anti-snag | 100W PoE | Lifetime Warranty (StarTech.com Advantage).
StarTech.com products are designed for IT professionals to meet their technical standards. The quality, compatibility, and reliability of the products are ensured by in-house and third-party laboratories and certifications from major technology companies.
StarTech.com CAT6 cable range uses 100% copper and gold-plated pins. All our Category 6 cables undergo rigorous physical and electrical tests, including repetitive bending cycle tests. Each cable is individually tested (Fluke® patch cord test) to measure NEXT and RL in worst-case scenarios. In addition to these tests, StarTech.com works with leading external test laboratories, such as ETL, to obtain product performance and safety certifications.
Backed by a StarTech.com risk-free lifetime warranty and 24/5 support from qualified technical advisors, the brand is trusted by the entire IT ecosystem and is used by over 80% of Fortune 500 companies.
The LSZH (Low Smoke Zero Halogen) Category 6 patch cable supports Multi-Gigabit error-free connections: 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps (up to 160ft/55m). This high-performance, PVC-free cable provides reliable connectivity to all network devices, such as network interface cards (NICs), servers, routers, network-attached storage (NAS), VoIP phones, PoE devices, etc.
This eco-friendly CAT6 LSZH cable produces lower levels of toxic corrosive smoke and white smoke in case of fire; providing better visibility, allowing for safer and faster evacuation. StarTech.com offers the widest selection of lengths and colors, ensuring your enterprise network and workstations remain connected and organized.
Engineered for professional applications: Specifications drawings availableStarTech.com makes integrating CAT6 cable into your network easy by providing detailed technical specifications and engineering drawings.
Hassle-free installation with reliable performance and flexibility6.0mm (0.23") outer diameter, flexible PVC-free jacket with 100mm (3.93") bend radius.
Flexible HD-PE insulation to reduce intra-pair crosstalk.
Spline separator for reduced inter-pair crosstalk and improved heat dissipation for 100W PoE.24AWG (0.25mm2).
100% copper, twisted pair stranded wires. U/UTP cable construction
ETL verified electrical characteristics for maximum performance. Cable impedance: 100 ohms ± 15% at 250 MHz max. DC resistance: 14 ohms per 1000 feet (305 m).
Pair to GND capacity: 330 pF per 100 m. Mutual Capacitance: 5.6 nF per 305 m.
Propagation Delay Skew: 45 ns per 100 m. Lab tested and third-party certified for product performance and safety.
3P verified to ANSI/TIA-568-2.D Category 6. Fluke® Tested CAT6 Patch CordThe StarTech.com Advantage.
StarTech.com products are designed for IT professionals to meet their technical standards. The quality, compatibility, and reliability of the products are ensured by in-house and third-party laboratories and certifications from major technology companies.
StarTech.com CAT6 cable range uses 100% copper and gold-plated pins. All our Category 6 cables undergo rigorous physical and electrical tests, including repetitive bending cycle tests. Each cable is individually tested (Fluke® patch cord test) to measure NEXT and RL in worst-case scenarios. In addition to these tests, StarTech.com works with leading external test laboratories, such as ETL, to obtain product performance and safety certifications.
Backed by a StarTech.com risk-free lifetime warranty and 24/5 support from qualified technical advisors, the brand is trusted by the entire IT ecosystem and is used by over 80% of Fortune 500 companies.
The LSZH (Low Smoke Zero Halogen) Category 6 patch cable supports Multi-Gigabit error-free connections: 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps (up to 160ft/55m). This high-performance, PVC-free cable provides reliable connectivity to all network devices, such as network interface cards (NICs), servers, routers, network-attached storage (NAS), VoIP phones, PoE devices, etc.
This eco-friendly CAT6 LSZH cable produces lower levels of toxic corrosive smoke and white smoke in case of fire; providing better visibility, allowing for safer and faster evacuation. StarTech.com offers the widest selection of lengths and colors, ensuring your enterprise network and workstations remain connected and organized.
- High-performance CAT6 Ethernet cable
- Reliable connection for your Ethernet devicesError-free Multi-Gigabit support - 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps (up to 55m), 10GBase-T
- Supports 650MHz for increased bandwidth
- 100% Copper cable, ideal for powering your devices
- Made with 100% bare copper wires, StarTech.com cables are fully compliant unlike others that use copper-clad aluminum (CCA) wires. Tested up to 100W of continuous power delivery.
- Compliant with IEEE 802.3bt Type 4 standard
- Excellent heat dissipation during prolonged use. Carries high-power PoE for laptops, IP TVs, security cameras, VoIP phones, NAS devices, etc.
- Quality construction: 50-micron gold-plated connectors. Snagless boot
- 40 mm (1.57") bend radius for robust molded strain relief and improved flexibility.
Engineered for professional applications: Specifications drawings availableStarTech.com makes integrating CAT6 cable into your network easy by providing detailed technical specifications and engineering drawings.
Hassle-free installation with reliable performance and flexibility6.0mm (0.23") outer diameter, flexible PVC-free jacket with 100mm (3.93") bend radius.
Flexible HD-PE insulation to reduce intra-pair crosstalk.
Spline separator for reduced inter-pair crosstalk and improved heat dissipation for 100W PoE.24AWG (0.25mm2).
100% copper, twisted pair stranded wires. U/UTP cable construction
ETL verified electrical characteristics for maximum performance. Cable impedance: 100 ohms ± 15% at 250 MHz max. DC resistance: 14 ohms per 1000 feet (305 m).
Pair to GND capacity: 330 pF per 100 m. Mutual Capacitance: 5.6 nF per 305 m.
Propagation Delay Skew: 45 ns per 100 m. Lab tested and third-party certified for product performance and safety.
3P verified to ANSI/TIA-568-2.D Category 6. Fluke® Tested CAT6 Patch CordThe StarTech.com Advantage.
